MTI Instruments非接觸式測量ProTrak HD：2D / 3D激光

發布時間：2021-02-06 16:50:53 瀏覽：1184

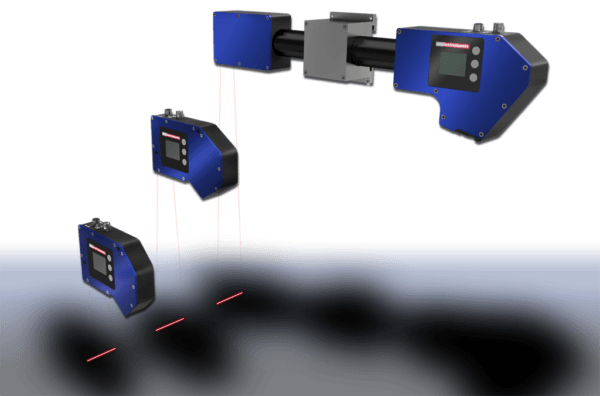

MTI Instruments非接觸式測量ProTrakHD：2D/3D激光是一款精準的應用在2D和3D輪廓分析的遠程控制非接觸式激光傳感器。ProTrakHD遠程控制仿型激光位移傳感器是致力于滿足工業生產應用中最苛刻的全自動規格、角度、折射率和高度而制定的。ProTrakHD能夠以每秒6000幀的快速速度和多達2.5μm的分辨率測量800mm。

特點

每秒1GB的傳輸速度

每秒6000幀

TCP/IP千兆以太網

內置式顯示和控制面板

吹凈范圍從60mm到800mm

1200萬分每秒

機器人兼容性，IP-67

可在惡劣環境中應用的附件

滿足CE

NILabVIEW驅動程序，包含SDK

深圳市立維創展科技有限公司，優勢直接渠道提供MTI Instrument s訂貨服務，歡迎咨詢。

詳情了解MTI Instrument s請點擊：/brand/70.html

或聯系我們的銷售工程師：0755-83642657 QQ: 2295048674


P/N	Model	Measurement Range	Accuracy	Resolution	Interface	Type	Frequency Response
8000-1034-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2μm	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2μm	Ethernet	BLUE Laser, 2M Laser Class	6kHz
8000-1036-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2μm	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2μm	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2μm	Ethernet	BLUE Laser, 3B Laser Class	6kHz
8000-1034-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2μm	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2μm	Ethernet	BLUE Laser, 2M Laser Class	6kHz
8000-1036-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2μm	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2μm	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2μm	Ethernet	BLUE Laser, 3B Laser Class	6kHz
8000-1034-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6μm	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6μm	Ethernet	BLUE Laser,2M Laser Class	6kHz
8000-1036-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6μm	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6μm	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6μm	Ethernet	BLUE Laser, 3B Laser Class	6kHz
8000-1034-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8μm	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8μm	Ethernet	BLUE Laser,2M Laser Class	6kHz
8000-1036-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8μm	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8μm	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8μm	Ethernet	BLUE Laser, 3B Laser Class	6kHz
8000-1034-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28μm	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28μm	Ethernet	BLUE Laser, 2M Laser Class	6kHz
8000-1036-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28μm	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28μm	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28μm	Ethernet	BLUE Laser, 3B Laser Class	6kHz
