Infineon英飛凌P溝道功率MOSFET
發布時間：2024-11-11 09:27:06 瀏覽：498
Infineon英飛凌提供的P溝道功率MOSFET系列是專為簡化中低功率應用設計而開發的高效能半導體器件。以下是該系列產品的核心特點和優勢：
主要特點：
載流子類型：利用空穴流作為載流子，與N溝道MOSFET相比具有不同的電氣特性。
電壓需求：需要負的柵極到源極電壓(VGS)來導通，適合作為高邊開關使用。
簡化設計：器件設計有助于在有限空間內實現低壓驅動應用和非隔離POL產品的簡化。
產品優勢：
廣泛的電壓等級：提供從-12V到-250V的多種電壓等級選項。
優化性能：增強型功率MOSFET簡化電路設計，同時優化性能。
易于獲取：-30V和-40V P溝道MOSFET優化了分銷商合作伙伴的供應支持。

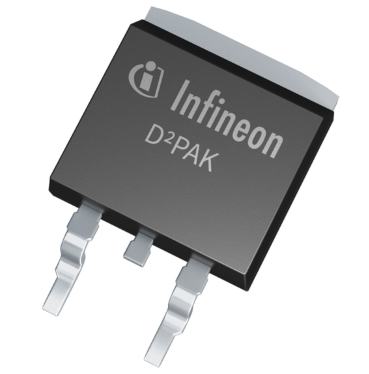

行業標準封裝：提供包括D2PAK、DPAK、DirectFET、IPAK、I2PAK、PQFN、SOT-223、TO-220、TO-247、SOT-23、TSOP-6和SuperSO8等在內的多種封裝類型。
應用領域：
電池保護：用于電池管理系統，防止過充和過放。
反極性保護：防止電池接反造成損害。
線性電池充電器：在充電設備中提供穩定的充電電流。
負載開關：控制電氣負載的通斷。
DC-DC轉換器：在電源轉換中提高能效。
低壓驅動：適用于需要低壓驅動的場合。
工業與汽車應用：
工業應用：適用于多種工業應用，如電池保護、反極性保護、線性電池充電器、負載開關、DC-DC轉換器、板載充電器、電機控制和低電壓驅動應用等。
汽車應用：提供專為汽車電子應用設計的、具有AEC認證的車規級P溝道功率MOSFET產品。
規格型號：
| Product | Infineon Package name | VDS max [V] | RDS (on) @10V max [m?] | RDS (on) @4.5V max [m?] | QG typ @10V [nC] | QG typ @4.5V [nC] | VGS(th) [V] | VGS(th) min [V] | VGS(th) max [V] | ID @25°C max [A] |
| BSC030P03NS3 G | PG-TDSON-8 | -30 | 3 |
| 140 |
| -2.5 |
|
| -100 |
| BSC060P03NS3E G | PG-TDSON-8 | -30 | 6 |
| 61 |
| -2.5 |
|
| -100 |
| BSC084P03NS3 G | PG-TDSON-8 | -30 | 8.4 |
| 43 |
| -2.5 |
|
| -78.6 |
| BSO201SP H | PG-DSO-8 | -20 |
| 8 |
|
| -0.9 |
|
| 14.9 |
| BSO301SP H | PG-DSO-8 | -30 | 8 |
| -102 |
| -1.5 |
|
| 14.9 |
| BSO613SPV G | PG-DSO-8 | -60 | 130 |
| 20 |
|
| -2.1 | -4 | -3.44 |
| BSR315P | PG-SC59-3 | -60 | 800 |
| 4 |
|
| -1 | -2 | 0.62 |
| BSZ086P03NS3 G | PG-TSDSON-8 | -30 | 8.6 |
| 43.2 |
| -2.5 |
|
| -40 |
| BSZ086P03NS3E G | PG-TSDSON-8 | -30 | 8.6 |
| 43.2 |
| -2.5 |
|
| -40 |
| BSZ120P03NS3 G | PG-TSDSON-8 | -30 | 12 |
| 30 |
| -2.5 |
|
| -40 |
| BSZ180P03NS3 G | PG-TSDSON-8 | -30 | 18 |
| 20 |
| -2.5 |
|
| 39.6 |
| BSZ180P03NS3E G | PG-TSDSON-8 | -30 | 18 |
| 20 |
| -2.5 |
|
| 39.6 |
| IPB110P06LM | PG-TO263-3 | -60 | 11 | 16 | -281 |
| -1.5 |
|
| -100 |
| IPB19DP10NM | PG-TO263-3 | -100 | 185 |
| -36 |
|
| -2.1 | -4 | -13.8 |
| IPB320P10LM | PG-TO263-3 | -100 | 32 | 37 | -219 | -110 |
| -1 | -2 | -63 |
| IPB330P10NM | PG-TO263-3 | -100 | 33 |
| -189 |
|
| -2.1 | -4 | -62 |
| IPB720P15LM | PG-TO263-3 | -150 | 72 | 73 | -224 | -110 |
| -1 | -2 | -41 |
| IPD042P03L3 G | PG-TO252-3 | -30 | 4.2 |
| 131 |
|
| -2 | -1 | -70 |
| IPD11DP10NM | PG-TO252-3 | -100 | 111 |
| -59 |
|
| -2.1 | -4 | -22 |
| IPD18DP10LM | PG-TO252-3 | -100 | 178 | 200 | -42 | -21 |
| -1 | -2 | -13.9 |
| IPD19DP10NM | PG-TO252-3 | -100 | 186 |
| -36 |
|
| -2 | -4 | -13.7 |
| IPD25DP06NM | PG-TO252-3 | -60 | 250 |
| -10.6 |
| -3 |
|
| -6.5 |
| IPD380P06NM | PG-TO252-3 | -60 | 38 |
| -63 |
| -3 |
|
| -35 |
| IPD42DP15LM | PG-TO252-3 | -150 | 420 | 430 | -43 | -21 |
| -1 | -2 | -9 |
| IPD650P06NM | PG-TO252-3 | -60 | 65 |
| -39 |
| -3 |
|
| -22 |
| IPD900P06NM | PG-TO252-3 | -60 | 90 |
| -27 |
| -3 |
|
| -16.4 |
| IPP330P10NM | PG-TO220-3 | -100 | 33 |
| -189 |
|
| -2.1 | -4 | -62 |
| IRF4905 | TO220 | -55 | 20 |
| 120 |
| -3 | -2 | -4 | -74 |
| IRF4905L | TO262 | -55 | 20 |
| 120 |
| -3 | -2 | -4 | -70 |
| IRF4905S | D2PAK | -55 | 20 |
| 120 |
| -3 | -2 | -4 | -70 |
| IRF5210 | TO220 | -100 | 60 |
| 120 |
| -3 | -2 | -4 | -40 |
| IRF5210S | D2PAK | -100 | 60 |
| 150 |
| -3 | -2 | -4 | -38 |
| IRF5305 | TO220 | -55 | 60 |
| 42 |
| -3 | -2 | -4 | -31 |
| IRF5305S | D2PAK | -55 | 60 |
| 42 |
| -3 | -2 | -4 | -31 |
| IRF5803 | TSOP6L | -40 | 112 | 190 | 25 |
| -2 | -1 | -3 | -3.4 |
| IRF7205 | SO8 | -30 | 70 | 130 | 27 |
| -2 | -1 | -3 | -4.6 |
| IRF7240 | SO8 | -40 | 15 | 25 | 73 |
| -2 | -1 | -3 | -10.5 |
| IRF7410 | SO8 | -12 |
| 7 |
| 91 | -0.65 | -0.4 | -0.9 | -16 |
| IRF7416 | SO8 | -30 | 20 | 35 | 61 |
| -1.52 | -1 | -2.04 | -10 |
| IRF9310 | SO8 | -30 | 4.6 | 6.8 |
| 58 | -1.8 | -1.3 | -2.4 | -20 |
| IRF9317 | SO8 | -30 | 6.6 | 10.2 |
| 31 | -1.8 | -1.3 | -2.4 | -16 |
| IRF9321 | SO8 | -30 | 7.2 | 11.2 |
| 34 | -1.8 | -1.3 | -2.4 | -15 |
| IRF9388 | SO8 | -30 | 11.9 |
|
| 18 | -1.8 | -1.3 | -2.4 | -12 |
| IRF9530N | TO220 | -100 | 200 |
| 38.7 |
| -3 | -2 | -4 | -14 |
| IRF9530NS | D2PAK | -100 | 200 |
| 38.7 |
| -3 | -2 | -4 | -14 |
| IRF9540N | TO220 | -100 | 117 |
| 64.7 |
| -3 | -2 | -4 | -23 |
| IRF9540NS | D2PAK | -100 | 117 |
| 73 |
| -3 | -2 | -4 | -23 |
| IRF9Z34N | TO220 | -55 | 100 |
| 23.3 |
| -3 | -2 | -4 | -19 |
| IRF9Z34NS | D2PAK | -55 | 100 |
| 23.3 |
| -3 | -2 | -4 | -19 |
| IRFR5305 | DPAK | -55 | 65 |
| 42 |
| -3 | -2 | -4 | -31 |
| 65 | 42 | -3 | -2 | -4 | -31 |
| IRFR5410 | DPAK | -100 | 205 |
| 38.7 |
| -3 | -2 | -4 | -13 |
| 205 | 38.7 | -3 | -2 | -4 | -13 |
| IRFR5505 | DPAK | -55 | 110 |
| 21.3 |
| -3 | -2 | -4 | -18 |
| 110 | 21.3 | -3 | -2 | -4 | -18 |
| IRFR6215 | DPAK | -150 | 580 |
| 44 |
| -3 | -2 | -4 | -13 |
| 580 | 44 | -3 | -2 | -4 | -13 |
| IRFR9024N | DPAK | -55 | 175 |
| 12.7 |
| -3 | -2 | -4 | -11 |
| 175 | 12.7 | -3 | -2 | -4 | -11 |
| IRFR9120N | DPAK | -100 | 480 |
| 18 |
| -3 | -2 | -4 | -6.6 |
| 480 | 18 | -3 | -2 | -4 | -6.6 |
| IRFU5305 | IPAK | -55 | 65 |
| 42 |
| -3 | -2 | -4 | -31 |
| IRFU9024N | IPAK | -55 | 175 |
| 12.7 |
| -3 | -2 | -4 | -11 |
| IRLHS2242 | PG-TSDSON-6 | -20 |
| 31 |
| 9.6 | -0.8 | -0.4 | -1.1 | -15 |
| IRLML2244 | SOT23 | -20 |
| 54 |
| 6.9 | -0.75 | -0.4 | -1.1 | -4.3 |
| IRLML2246 | SOT23 | -20 |
| 135 |
| 2.9 | -0.75 | -0.4 | -1.1 | -2.6 |
| IRLML5103 | SOT23 | -30 | 600 | 1000 | 3.4 |
|
| -1 |
| -0.76 |
| IRLML6401 | SOT23 | -12 |
| 50 |
| 10 | -0.55 | -0.4 | -0.95 | -4.3 |
| IRLR9343 | DPAK | -55 | 105 | 170 | 31 |
|
| -1 |
| -20 |
| IRLTS2242 | TSOP6L | -20 |
| 32 |
| 12 | -0.75 | -0.4 | -1.1 | -6.9 |
| ISC16DP15LM | PG-TDSON-8 | -150 | 160 | 160 | -94 | -46 |
| -1 | -2 | -22 |
| ISC240P06LM | PG-TDSON-8 | -60 | 24 | 32 | -102 | -51 |
| -1 | -2 | -59 |
| ISC750P10LM | PG-TDSON-8 | -100 | 75 | 86 | -92 | -46 |
| -1 | -2 | -32 |
| ISC800P06LM | PG-TDSON-8 | -60 | 80 | 100 | -11.2 | -16 |
| -1 | -2 | -19.6 |
| ISP12DP06NM | PG-SOT223-4 | -60 | 125 |
| -20.2 |
|
| -2.1 | -4 | -2.8 |
| ISP14EP15LM | PG-SOT223-4 | -150 | 1380 | 1400 | -11.6 | -6 | -1.5 | -1 | -2 | -1.29 |
| ISP16DP10LM | PG-SOT223-4 | -100 | 160 | 190 | -42 | -21 | -1.5 | -1 | -2 | -3.9 |
| ISP16DP10LMA | PG-SOT223-4 | -100 | 167 | 190 | -41 | -21 |
| -1 | -2 | -3.9 |
| ISP20EP10LM | PG-SOT223-4 | -100 | 2000 | 2200 | -3.5 | -1.8 | -1.5 | -1 | -2 | -0.99 |
| ISP25DP06LM | PG-SOT223-4 | -60 | 250 | 310 | -13.9 |
|
| -1 | -2 | -1.9 |
| ISP25DP06NM | PG-SOT223-4 | -60 | 250 |
| -10.8 |
|
| -2.1 | -4 | -1.9 |
| ISP650P06NM | PG-SOT223-4 | -60 | 65 |
| -39 |
|
| -2.1 | -4 | -3.7 |
| ISP670P06NMA | PG-SOT223-4 | -60 | 67 |
| -36 |
|
| -2.1 | -4 | -6.4 |
| ISP75DP06LM | PG-SOT223-4 | -60 | 750 | 1000 | -4 |
|
| -1 | -2 | -1.1 |
| ISP98DP10LM | PG-SOT223-4 | -100 | 980 | 1050 | -7.2 | -3.6 | -1.5 | -1 | -2 | -1.55 |
| ISS17EP06LM | PG-SOT23-3 | -60 | 1700 | 2200 | -1.79 |
| -1.5 |
|
| -0.3 |
| ISS55EP06LM | PG-SOT23-3 | -60 | 5500 | 7000 | -0.59 |
| -1.5 |
|
| -0.18 |
| ISZ15EP15LM | PG-TSDSON-8 | -150 | 1500 | 1600 | -11 | -5.5 |
| -1 | -2 | -2.7 |
| ISZ24DP10LM | PG-TSDSON-8 | -100 | 245 | 280 | -29.6 | -14.9 |
| -1 | -2 | -10.3 |
| ISZ56DP15LM | PG-TSDSON-8 | -150 | 560 | 550 | -30 | -15.2 |
| -1 | -2 | -6.7 |
| ISZ75DP15LM | PG-TSDSON-8 | -150 | 750 | 770 | -22.9 | -11.6 |
| -1 | -2 | -5.1 |
| ISZ810P06LM | PG-TSDSON-8 | -60 | 81 | 105 | -32.2 | -16 |
| -1 | -2 | -19.5 |
| SPB80P06P G | PG-TO263-3 | -60 | 23 |
| 115 |
| -3 |
|
| -80 |
| SPD04P10PL G | PG-TO252-3 | -100 | 850 |
| 12 |
| -1.5 |
|
| -4.2 |
| SPD08P06P G | PG-TO252-3 | -60 | 300 |
| 8.83 |
| -3 |
|
|
|
| SPD09P06PL G | PG-TO252-3 | -60 | 250 |
| 14 |
| -1.5 |
|
| -9.7 |
| SPD15P10P G | PG-TO252-3 | -100 | 240 |
| -37 |
| -3 |
|
| -15 |
| SPD15P10PL G | PG-TO252-3 | -100 | 200 |
| 47 |
| -1.5 |
|
| -15 |
| SPD18P06P G | PG-TO252-3 | -60 | 130 |
| 22 |
| -3 |
|
| -18.6 |
| SPD30P06P G | PG-TO252-3 | -60 | 75 |
| 32 |
| -3 |
|
| -30 |
| SPD50P03L G | PG-TO252-5 | -30 | 7 |
| -95 |
| -1.5 |
|
| -50 |
| SPP80P06P H | PG-TO220-3 | -60 | 23 |
| 115 |
| -3 |
|
| -80 |
